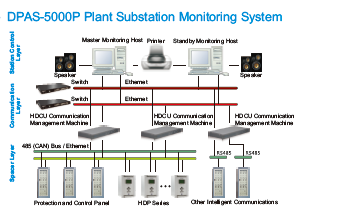

DPAS-5000P station integrated automation monitoring system which is integrated power generation set computer monitoring, field data collection and processing, sequential control, excitation, speed control, automatic quasi synchronization, power regulation and electrical protection and many other functions for the integrated control system.
            Generator protection screen is composed of Microcomputer generator difference protector (HDPG-810), Microcomputer generator backup integrated protection and monitoring device (HDPG-820), Microcomputer generator ground protector(HDPG-830) a total of three device which used in the capacity of a complete set of protection and below 125000 kilowatt generator, but also can be combined withHDPT-800 series transformer protection of the company the composition of the complete protection, generator - transformer.
             Synchronous screen can realize unit or line switch quickly and accurately, without the impact of the automatic synchronization operation; and HDPQ-SLX supporting the use of line selection device, can be applied to many synchronization point object (2-16 asynchronization point).Control panel as the AC sampling, switch input and temperature input, control output intelligent terminal equipment, the realization of measurement and control function ofthe site auxiliary equipment.
